Canon EOS R: Electronic vs. Mechanical Shutters

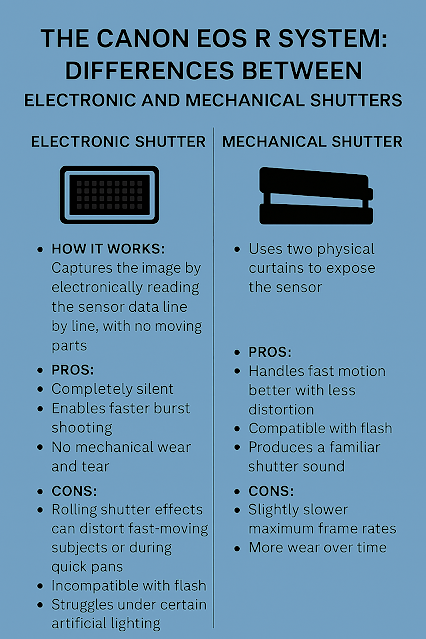

The Canon EOS R System: Differences Between Electronic and Mechanical Shutters. Up to R3 / R5

ELECTRONIC SHUTTERS

HOW THEY COMPARE TO MECHANICAL SHUTTERS >>

Abstract

Canon’s transition from DSLR to mirrorless technology through the EOS R system marks a significant technological evolution. One of the most crucial innovations in this transition is the refined implementation of shutter mechanisms—namely the mechanical shutter, electronic first curtain shutter (EFCS), and fully electronic (silent) shutter. This paper provides a comprehensive overview of the differences between these shutter modes in Canon EOS R mirrorless cameras, exploring their technical architecture, practical implications, advantages and disadvantages, and suitability for different photographic genres. The report includes references to key Canon EOS R bodies including the Canon EOS R, R5, R6, R3, and R7, with contextual examples and professional applications.

1. Introduction

The Canon EOS R series, launched in 2018 with the original Canon EOS R, signifies Canon’s full embrace of mirrorless camera technology. As part of this transition, the move away from traditional mechanical systems—such as the mirror box and entirely mechanical shutter mechanisms—has enabled more compact designs, higher burst rates, and quieter operation.

One of the most pivotal technological distinctions lies in the shutter mechanism. Unlike DSLRs that rely primarily on mechanical shutters, mirrorless cameras like the Canon EOS R series offer three shutter modes:

1. Mechanical Shutter

2. Electronic First-Curtain Shutter (EFCS)

3. Electronic Shutter (Silent Shutter)

Understanding these differences is essential for both amateur and professional photographers, particularly in terms of image quality, distortion, noise control, durability, and shooting style.

2. Mechanical Shutter: Structure and Performance

2.1 Technical Overview

A mechanical shutter uses two physical curtains that move vertically in front of the image sensor:

• The first curtain opens to begin the exposure.

• The second curtain closes to end the exposure.

This method has been standard in film and DSLR cameras for decades.

2.2 Mechanical Shutter in Canon EOS R Series

In the EOS R series, mechanical shutters have been refined to reduce vibrations and enhance durability:

• EOS R: Mechanical shutter capable of 8 fps.

• EOS R5 / R6: Up to 12 fps with mechanical shutter.

• EOS R3: Durable mechanical shutter rated for over 500,000 cycles.

2.3 Advantages

• Minimal rolling shutter effect: Particularly useful in high-speed or fast-action photography.

• Natural motion rendering: Especially important for flash photography.

• Flash compatibility: Sync speeds up to 1/200s (EOS R), 1/250s (EOS R5), or even 1/300s (EOS R3).

2.4 Disadvantages

• Noise: Audible shutter click can be disruptive in wildlife, street, or ceremony settings.

• Vibration: Minor camera shake, though mitigated in newer models.

• Mechanical wear: Though rated for hundreds of thousands of cycles, shutters do wear out.

3. Electronic Shutter: Innovation and Application

3.1 Technical Overview

An electronic shutter exposes the image sensor without any mechanical movement. The sensor is powered on and off digitally, capturing the image by “reading” the data line by line.

3.2 Electronic Shutter in Canon EOS R Series

• EOS R: Limited use of electronic shutter (only for silent mode, at slower frame rates).

• EOS R5 / R6: Up to 20 fps using electronic shutter.

• EOS R3: Up to 30 fps with minimal rolling shutter due to stacked sensor design.

3.3 Advantages

• Silent operation: Ideal for weddings, wildlife, and street photography.

• No mechanical wear: Extends the life of the camera.

• High-speed shooting: Essential for action and sports photography.

3.4 Disadvantages

• Rolling shutter distortion: Fast-moving subjects may appear skewed.

• Banding under artificial light: Particularly with LED or fluorescent lighting.

• Limited flash compatibility: Most Canon EOS R cameras don’t support flash with electronic shutter (except EOS R3 with specific setups).

4. Electronic First-Curtain Shutter (EFCS): Hybrid Efficiency

4.1 Technical Overview

EFCS combines the best of both shutter types:

• The first curtain is electronic.

• The second curtain is mechanical.

4.2 EFCS in Canon EOS R Cameras

• Default shutter mode in many Canon mirrorless bodies.

• Balances speed and image quality.

• Reduces shutter lag and vibration.

4.3 Advantages

• Reduced vibration: No mechanical shock from the first curtain.

• Faster than full mechanical: Lower delay and blackout.

• Fewer artifacts than electronic shutter.

4.4 Disadvantages

• Incompatibility at very high shutter speeds: May produce uneven exposure above 1/2000s.

• Not completely silent.

5. Rolling Shutter and Global Shutter Technology

5.1 Rolling Shutter Explained

With rolling shutter, the sensor captures the image line by line. Fast movements (such as a propeller or golf swing) may appear skewed or bent.

5.2 Canon’s Mitigation Strategies

• EOS R3: Features a stacked CMOS sensor, which reduces rolling shutter significantly.

• DIGIC X processor: Faster readout speeds.

5.3 Future Prospects

Canon is rumored to be developing global shutter sensors, which read all pixels simultaneously, eliminating distortion.

6. Practical Implications for Photographers

6.1 Sports and Wildlife

• Preferred: Electronic shutter (EOS R5/R3) for high FPS.

• Caution: Watch for rolling shutter; R3 is best suited due to fast readout.

6.2 Weddings and Ceremonies

• Silent mode essential: Electronic shutter avoids disturbing the scene.

• Lighting caution: Use mechanical shutter under artificial lights to avoid banding.

6.3 Studio and Flash Photography

• Essential: Mechanical or EFCS for consistent flash sync.

• Avoid: Electronic shutter unless using the Canon EOS R3 with special flash setups.

6.4 Street and Documentary

• Discreet shooting: Electronic shutter is preferable.

• Compromise: EFCS if lighting conditions or subject movement require.

7. Shutter Modes Comparison Table

Feature	Mechanical	EFCS	Electronic
Noise	Audible	Quieter	Silent
Vibration	Moderate	Low	None
Shutter Lag	Higher	Moderate	Lowest
Durability	Finite	Medium	Infinite
Rolling Shutter	None	Minimal	Potentially High
Flash Use	Full support	Full support	Limited (R3 supports)
Max FPS	~12	~15	Up to 30
Best For	Flash, fast action	General	Silent needs, wildlife

8. Canon EOS R Series Examples and Use Cases

8.1 Canon EOS R

• Entry mirrorless model.

• Limited silent shutter performance.

• Best to use mechanical or EFCS.

8.2 Canon EOS R5 / R6

• Advanced FPS options.

• 20 fps electronic, 12 fps mechanical.

• Professional-grade silent shutter.

8.3 Canon EOS R3

• Stacked sensor nearly eliminates rolling shutter.

• 30 fps electronic shutter.

• Full electronic shutter usable with flash under specific conditions.

8.4 Canon EOS R7 (APS-C)

• 15 fps mechanical / 30 fps electronic.

• Excellent hybrid solution for action and bird photography.

• Rolling shutter more noticeable than on R3.

9. Limitations and Considerations

9.1 Firmware Updates

• Canon regularly updates firmware to enhance shutter performance (e.g., adding flash compatibility or improving readout speed).

9.2 Sensor Design

• Stacked sensors are crucial for minimizing electronic shutter issues.

• Expect stacked sensors to become more standard in future EOS R models.

9.3 Professional Workflow

• Many professionals configure shutter mode based on shooting context:

  • Sports: Electronic.

  • Studio: Mechanical.

  • Wedding: EFCS or Electronic.

10. Future of Shutter Technology in Mirrorless Cameras

Canon’s move toward global shutter, AI-assisted exposure, and completely silent shooting environments means the mechanical shutter may eventually be phased out. However, until electronic shutter artifacts are entirely eliminated and flash compatibility becomes universal, mechanical shutters will remain a vital component for many professionals.

Canon EOS R6 First Impressions and Sample Images

11. Conclusion

The Canon EOS R system offers photographers a highly flexible suite of shutter options, catering to diverse photographic needs. Mechanical shutters provide reliability and compatibility, especially for flash photography. EFCS offers a hybrid approach with balanced advantages, while electronic shutters deliver blazing speed and complete silence—albeit with limitations.

Professional photographers must understand the capabilities and constraints of each shutter mode to make context-appropriate choices, especially in areas like sports, weddings, studio, and wildlife photography. Canon’s innovations, particularly in the EOS R3’s stacked sensor, demonstrate how these technologies continue to evolve.

Ultimately, the future of shutter technology lies in global shutters and sensor advancements, but until then, choosing the right shutter mode for the right scenario remains essential.

References

Canon Inc. (2020). Canon EOS R5 Specifications. Retrieved from https://www.canon.com

Canon Inc. (2021). Canon EOS R3 Technical White Paper. Retrieved from https://www.canon.com

Canon USA. (2021). EOS R Series Camera Lineup. Retrieved from https://www.usa.canon.com

Hagen, J. (2021). Understanding Rolling Shutter vs. Global Shutter. Photography Life. Retrieved from https://photographylife.com/rolling-vs-global-shutter

Kelby, S. (2022). The Canon EOS R5 Field Guide. Peachpit Press.

Rockwell, K. (2021). Canon EOS R3 Review. Retrieved from https://www.kenrockwell.com
